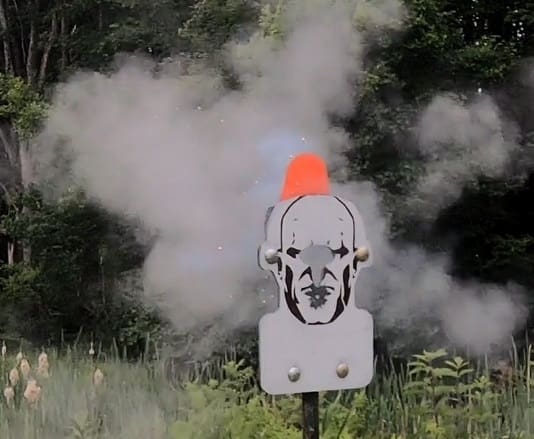

Hang Fast T Box RED MIST AR500 steel sniper target with auto resetting center medulla swinger plate
Hang Fast T Box RED MIST AR500 steel sniper target with auto resetting center medulla swinger plate

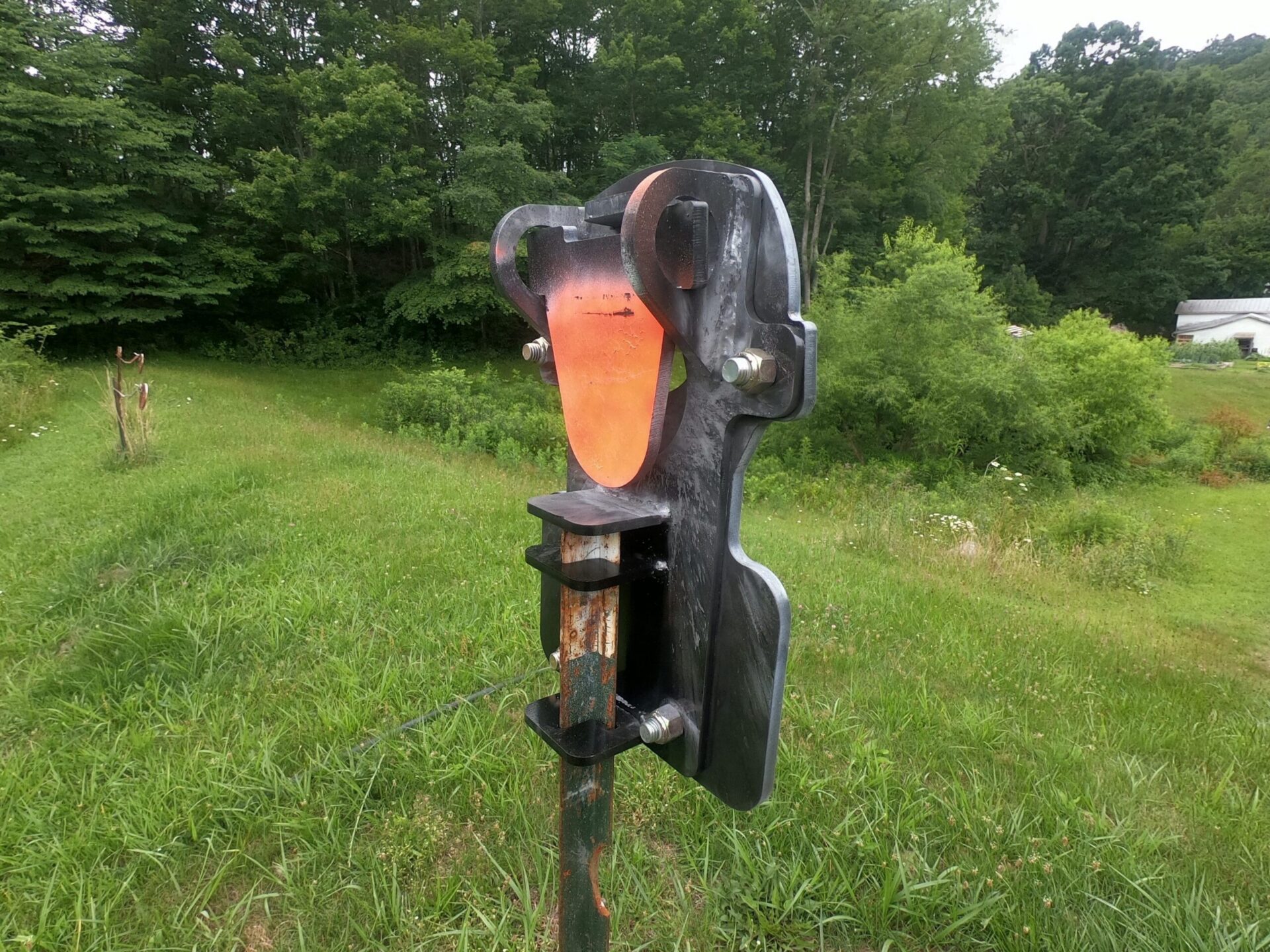

Rear view of Hang Fast Red Mist T-Post target showing flapper plate and mounting hardware.

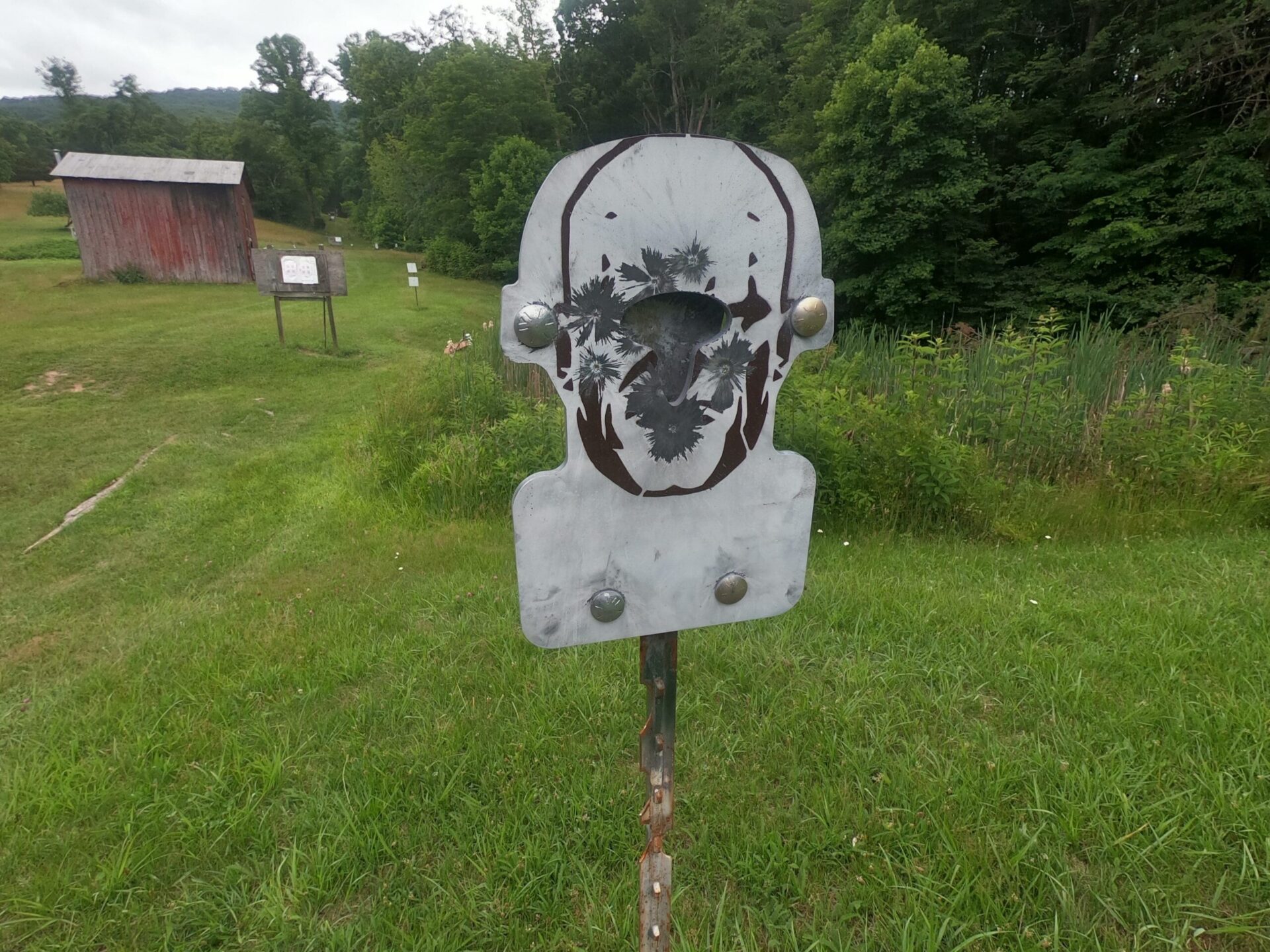

Front view of Hang Fast Red Mist T-Post target showing medulla zone on the AR500 target face.

“T” Box RED MIST Target

$195.71

“T” Box Red Mist Target

A great tool designed for precision shooting and long-range training. It is built to withstand rigorous practice sessions.

  • Reactive Training:
    The target features a swinging center plate designed to provide instant visual feedback. Upon a successful strike, the plate moves and automatically resets for the next shot.
  • Durable Construction:
    Constructed from 3/8” AR500 steel, this target is designed to handle repeated impacts from high-caliber rifles. The plate is reversible for extended target life.  NO WELDS ON THE PLATE
  • Simple Setup:
    This system allows for assembly without the use of tools or bolts. The design slides directly onto a standard T-post, allowing for a quick setup at the range.
  • Easy to Move:
    With a compact design, this target is highly portable. It measures 14″ x 9″ x 4″ and weighs 18 lbs, making it easy to transport to different locations or store in a vehicle.
  • Comes Assembled:   Painted and ready to hang and shoot.



1 in stock

Add to Wishlist
Add to Wishlist
Categories: , , Tags: , , , , ,

Description

The T Box RED MIST is a premium reactive target engineered for elite tactical marksmen, law enforcement snipers, and long-range hunters who demand immediate visual feedback on critical precision shots.

🎯 Hang Fast T Box RED MIST Target

Master your first-round impact with the ultimate precision training tool. Built for grueling cold-bore drills and high-stress long-range courses, this target forces you to earn every hit. It provides a highly specialized visual profile that mimics elite tactical training standards.

🛡️ Core Engineering & Field Features

  • Anatomical Medulla Swinger:
    • Mechanical Action: Features an auto-resetting center swinging plate.
    • Instant Feedback: Positioned precisely inside the high-stakes medulla zone.
    • Rapid Reset: Flapper plate flashes the orange side when hit mimicking the RED MIST .
  • Premium Reversible AR500 Steel:
    • Heavy-Duty Construction: Machined from ultra-tough 3/8″ certified AR500 armor.
    • Maximum Lifespan: The entire strike face plate layout is fully reversible.
    • Even Wear: Flip the steel over to double your target’s lifespan.
  • Steel Without the Struggle:
    • No-Tool Installation: Sets up on the range in under ten seconds.
    • Hardware-Free Mount: Slides directly over any standard forged T-post.
    • Zero Bolt Fatigue: Eliminates traditional chains or brackets that snap.
  • Compact Range Portability:
    • Ultra-Light Footprint: Weighs only 18 lbs for fast layout transport.
    • True Dimensions: Measures a tight, packable 14″ x 9″ x 4″ profile.
    • Deploy Ready: Arrives completely pre-assembled, painted, and ready to shoot.

T Post info

T Posts are manufactured from recycled railroad steel and are available in a variety of weights 0.95lbs, 1.25 lbs. & 1.33lbs, etc. per foot. The post is designed in a “T” configuration, has studs every 2-1/2 inches to help support the fence, and includes a 7 in. long by 3 in. wide steel anchor plate to stabilize the post in the ground.  Our T Post hangers are designed for 1.25 and 1.33 lb / ft T Posts.

  • Manufactured from rail steel
  • Weight 1.25 lbs. per lin. ft., including the anchor plate (most common)
  • Coated with rust-resistant green enamel paint for corrosion protection
  • Should be driven into the ground a minimum of 12 in.
  • Use Fence Post Driver or sledge hammer to drive post into the ground.
  • Using a sledge hammer can deform the post making hanger installation difficult.
  • Available at most farm and hardware stores.   Home Depot and Lowes.

TIPS:

  • Inspect the top of posts for deformation before purchasing.  During manufacturing they are cut to length while hot and the ends can become deformed making installing the hanger difficult.  Some deformation is normal, look for twisted or very obvious deformations.
  • When installing for temporary use or light target loads in firm ground, pound the post deep enough to engage the fin at least halfway.   This will make removing the post easier.
  • Make life easier and get a T Post pounder.
  • Make life even easier and get a T Post puller.   For hard ground or deep posts, this tool is a lifesaver.
  • BUY LOCALLY!  T post are available everywhere and cost more to ship than they are worth.

Grade 8 Bolt info

GRADE 8 CARRIAGE BOLTS:

Grade 8 carriage bolts are a crucial component for withstanding the immense stress forces generated when high-energy rifle rounds hit plates. These bolts have a high tensile strength of 150,000 psi, surpassing the 60,000 psi of low carbon non-grade bolts commonly found in hardware stores. While grade 8 bolts are not bulletproof and can still be penetrated, they are designed to endure hits more effectively than non-grade bolts.

One notable advantage of using carriage bolts is their low-profile heads, which significantly reduce splatter deflection. Additionally, when paired with square hole plates, carriage bolts eliminate the need for using two wrenches during installation, providing convenience and saving time.

It is important to note that grade 8 carriage bolts may not be readily available at local hardware stores, so it’s advisable to purchase them along with your order to ensure you have the appropriate hardware for your shooting targets.

Target failures can be frustrating, but using grade 8 bolts can greatly reduce the likelihood of such incidents. In a test involving non-grade hardware store carriage bolts, they lasted only about 20 rounds from a 7.62 x 39 rifle at a distance of 50 yards on a 12 x 20 silhouette plate. The failure observed was exactly what grade 8 bolts are designed to prevent, bolt head shearing off resulting in target failure.

In summary, grade 8 carriage bolts provide the necessary strength and durability to withstand the forces generated by high-energy rifle rounds hitting plates. Their use, combined with low-profile heads and compatibility with square hole plates, contributes to a safer shooting experience with reduced splatter deflection.

  SHOP GRADE 8 BOLTS
